LP Single Stage Compressor Pumps

LP's cast iron, single stage air compressor pumps stand out in virtually every category of performance. Our single stage pumps are designed for commercial duty, 80/20 service intervals (run/stop). With oversize bearings resulting in a B10 bearing design life of over 4000 hours, LP's single stage pumps are reliable, offering longer life than the competition. Air compressor manufacturers across North America rely on LP single stage pumps to deliver air for your work.

Click on the Spec Sheet or Manual to read more.

Model # HP Min/Max Cyl Bore Inch Stroke Inch RPM Min/Max PSI Max CFM Rated Weight

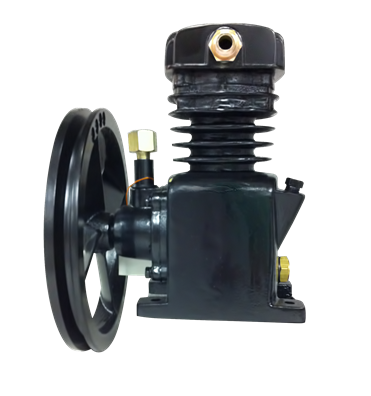

LPS5138 1/4 1.0 1 2.0 1.5 400 1200 155 3.3 17

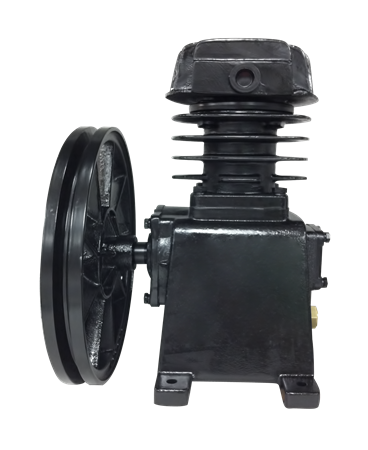

LPS6546 1/2 2 1 2.5 1.8 400 1200 155 8.1 31
LPV5145 3/4 2 2 2.0 1.5 500 1200 155 8.4 40
LPSS7538 1 2.5 2 3.0 1.5 500 1200 155 14 52
LPSS7550 1.5 4 2 3.0 2.0 500 1200 155 13 52
LPV6546 1.5 4 2 2.6 1.8 500 1200 155 15 55
LPW6548 2.5 5 3 2.6 1.9 500 1200 155 24 77
LPV8060 2.5 5 2 3.2 2.4 500 1200 155 23 88
LPW8060 3 7.5 3 3.2 2.4 500 1200 155 35 117
